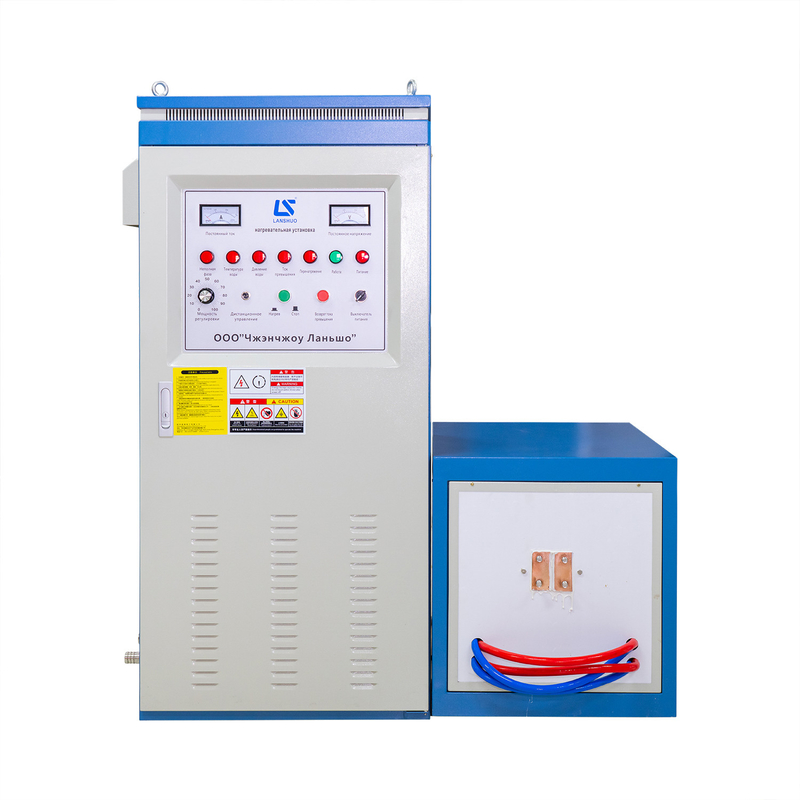

160kw IGBT Induction Heating Machine for Metal Forging
  • 160kw IGBT Induction Heating Machine for Metal Forging
  • 160kw IGBT Induction Heating Machine for Metal Forging
  • 160kw IGBT Induction Heating Machine for Metal Forging
  • 160kw IGBT Induction Heating Machine for Metal Forging
  • 160kw IGBT Induction Heating Machine for Metal Forging
  • 160kw IGBT Induction Heating Machine for Metal Forging
160kw IGBT Induction Heating Machine for Metal Forging

160kw IGBT Induction Heating Machine for Metal Forging

Place of Origin China
Merknaam Lanshuo
Certificering CE ISO EAC
Model Number LSW-160
Productgegevens
Product Category:
Induction Heating Machine
Product Name:
Portable High Frequency Induction Heating Machine for Hot Forging
Main Features:
Stable operation, High heating speed, Easy installation, Isolated transformer, Environmentally friendly, Wide applications, Low failure rate, High degree of automation
Application:
Heat treatment, Thermoforming, Welding, Metal melting, Other applications
Rated Power:
160kw
Core Element:
IGBT
Oscillation Frequency:
18-35kHz
Duty Cycle:
100%
Markeren:

160kw induction heating machine

,

IGBT metal forging heater

,

industrial induction heating equipment

Betalings- en verzendvoorwaarden
Minimum Order Quantity
1 set
Prijs
USD 6000-7000 / set
Packaging Details
plywood case, 740*570*1530mm, 950*590*780mm
Delivery Time
5-7 working days after receiving advanced payments
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
2000 sets per year
Productbeschrijving
IGBT 160kw Induction Heating Machine Heating Power Supply
Product Overview
Product Category Induction Heating Machine
Product Name Portable High Frequency Induction Heating Machine for Hot Forging
Main Features Stable operation, High heating speed, Easy installation, Isolated transformer, Environmentally friendly, Wide applications, Low failure rate, High degree of automation
Application Heat treatment, Thermoforming, Welding, Metal melting, Other applications
Rated Power 160kw
Core Element IGBT
Oscillation Frequency 18-35kHz
Duty Cycle 100%
Product Description
Our high frequency induction heating machine adopts IGBT series and parallel induction heating technology as the core. The induction heating machine heats the work piece to a certain temperature, and then cools it rapidly to change its machine structure to achieve some special mechanic properties.
Key Features
  • High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
  • Energy saving: The induction heating machine adopts IGBT from Siemens & LC series circuit design, saving energy up to 15%-30%.
  • Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
  • Easy installation: Following the user manual, even non-professional persons can install the induction heating machine easily.
  • Stable operation: Complete protection, make customers have nothing to worry about.
  • Environmentally friendly: The induction heating machine uses electricity, producing little waste gas and water.
Technical Specifications
Product Name Portable High Frequency Induction Heating Machine for Hot Forging
Rated Power 160kw
Input Current 240A
DC Voltage 512V
Oscillation Frequency 18-35kHz
Duty Cycle 100%
Warranty 12 Months
Power Supply Cabinet Dimension 600*480*1360mm
Isolation Transformer Dimension 800*500*580mm
Logo Customized
Certificates CE ISO EAC
Application Heat treatment, Thermoforming, Welding, Metal melting, Other applications
Product Certifications
160kw IGBT Induction Heating Machine for Metal Forging 0 160kw IGBT Induction Heating Machine for Metal Forging 1 160kw IGBT Induction Heating Machine for Metal Forging 2
Support and Services
  • On-site installation and setup assistance
  • Comprehensive user training and support
  • Troubleshooting and diagnostics for technical issues
  • Regular maintenance services to ensure optimal performance
  • Access to online resources and documentation for self-help
Packaging and Shipping
Product Packaging: The Induction Heating Machine is carefully packaged in a sturdy cardboard box with foam padding to prevent any damage during transportation.
Shipping Information: Free shipping within the United States. International shipping available with additional charges. Products ship within 1-2 business days with tracking provided.
Frequently Asked Questions
Q: What is the brand name of this Induction Heating Machine?
A: The brand name of this Induction Heating Machine is Lanshuo.
Q: What is the model number of this Induction Heating Machine?
A: The model number of this Induction Heating Machine is LSW-16.
Q: What certification does this Induction Heating Machine have?
A: This Induction Heating Machine is CE certified.
Q: Where is this Induction Heating Machine manufactured?
A: This Induction Heating Machine is manufactured in China.
Q: What are the available payment terms for purchasing this Induction Heating Machine?
A: The available payment terms are L/C, D/A, D/P, T/T, Western Union, and MoneyGram.
160kw IGBT Induction Heating Machine for Metal Forging 3 160kw IGBT Induction Heating Machine for Metal Forging 4
