High Frequency 30kw Induction Heating Machine for Metal Quenching Hardening
  • High Frequency 30kw Induction Heating Machine for Metal Quenching Hardening
  • High Frequency 30kw Induction Heating Machine for Metal Quenching Hardening
  • High Frequency 30kw Induction Heating Machine for Metal Quenching Hardening
  • High Frequency 30kw Induction Heating Machine for Metal Quenching Hardening
High Frequency 30kw Induction Heating Machine for Metal Quenching Hardening

High Frequency 30kw Induction Heating Machine for Metal Quenching Hardening

Place of Origin CHINA
Merknaam ZHENGZHOU LANSHUO
Certificering CE
Model Number LSW-30
Productgegevens
Power:
30kw
DC current:
50A
DC voltage:
500V
Input voltage:
Three-phase 380V/420V/440V,50-60HZ
Heating frequency:
25-50KHZ
Air switch:
3*100A
Ground wire:
1mm²
Water pressure:
0.15-0.2MPa
Input power cord:
10mm²copper wire
Input power control switch:
3*100A
Markeren:

High Frequency Induction Heating Machine

,

30kw Induction Heating Machine

,

Quenching Induction Heating Machine

Betalings- en verzendvoorwaarden
Minimum Order Quantity
1 SET
Prijs
1000-2000USD
Packaging Details
WOODEN CASE
Delivery Time
3-5 WORKING DAYS
Payment Terms
T/T
Productbeschrijving
parameter Power 30KW
DC current 50A
DC voltage 500V
Input voltage

Three-phase

380V/420V/440V,50-60HZ
Heating frequency 25-50KHZ
Air switch 3*100A
Ground wire 1mm²
Water pressure 0.15-0.2MPa
Dimension(after packing) 750mm*350mm*720mm
Weight(after packing) 58KG



Power

installation

 Input power cord 10mm²copper wire
Input power control switch 3*100A
Equipment grounding wire

1mm²soft copper wire



Cooling water installation Number of water in the control cabinet

water intake:one

water outlet:one
Water pipe specification Inlet water pipe’s inner diameter :25mm
Water outlet pipe’s inner diameter :25mm

Cooling system

(two choices)

 Use 2m³water tank + 1.5kw circulating pump(head 25m, flow 10m³/h)
2P chiller





List of goods 30kw induction brazing machine 1 set
Foot switch 1 set
Induction coil(according to the workpiece design) 1 set

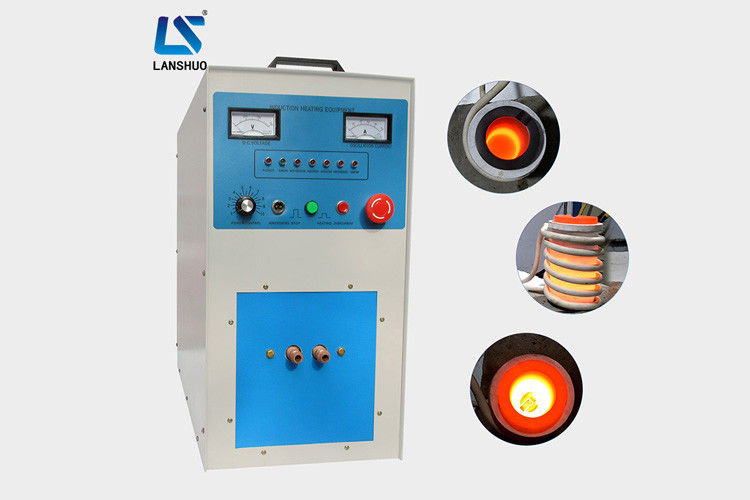

Picture of LSW-30:

High Frequency 30kw Induction Heating Machine for Metal Quenching Hardening 0



High Frequency 30kw Induction Heating Machine for Metal Quenching Hardening 1



High Frequency 30kw Induction Heating Machine for Metal Quenching Hardening 2



CE:

High Frequency 30kw Induction Heating Machine for Metal Quenching Hardening 3
